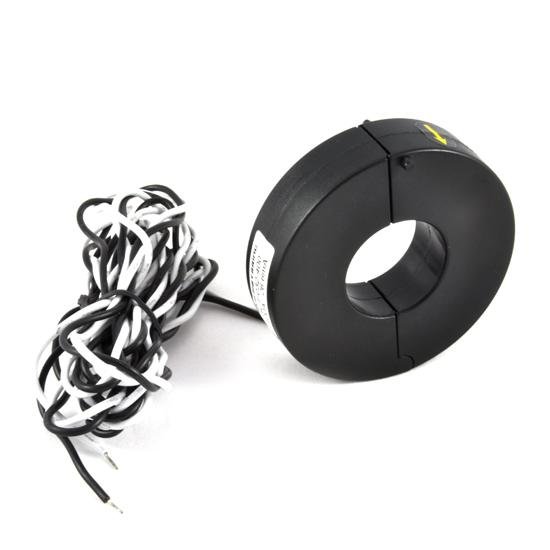

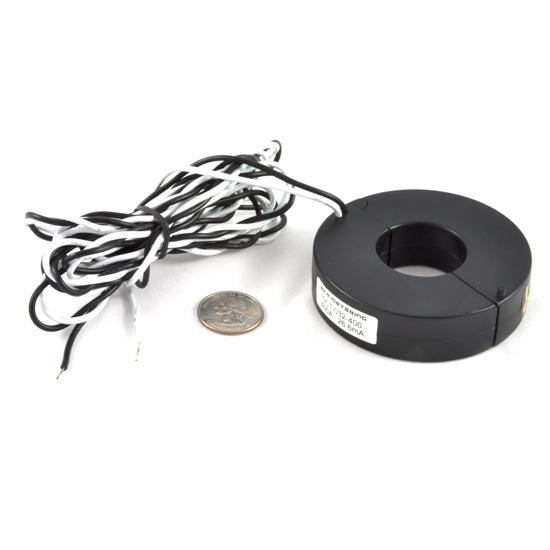

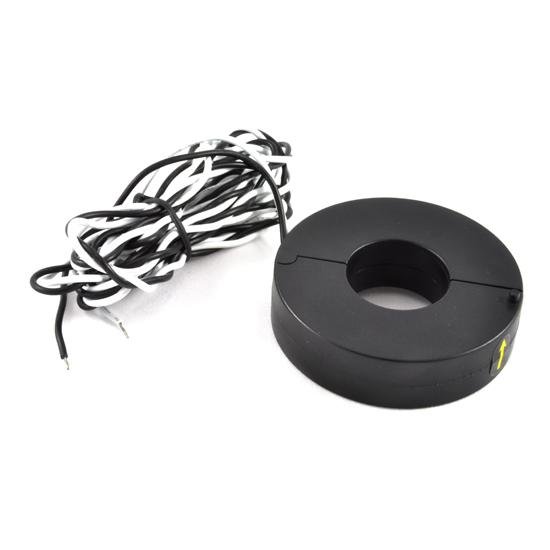

Split-core CT, 400A, 400A:26.6mA, 32mm (1.26") Hole Diameter, SCT-032-400UL
32mm 400A Split-core CT
CT Type: Split-Core
Amperage: 400 amps
Inside Diameter: 32 mm or 1.26 inches
Outside Diameter: 79 mm or 3.11 inches
Thickness: 20 mm or 0.79 inches
Model: SCT-032-400UL
Certifications: CE, Approved by UL for use with our UL Listed Omnimeters
Wire Gauge: For use on cable that is 700 MCM or smaller. It is best to measure your wire diameter in millimeters, rather than use the MCM wire size. This is because the insulation thickness varies materially from one wire manufacturer to the next. It is much better to oversize your CT than to undersize it.
Selected with accuracy and ease of installation in mind.
For use with our Omnimeter line of electric kWh meters.

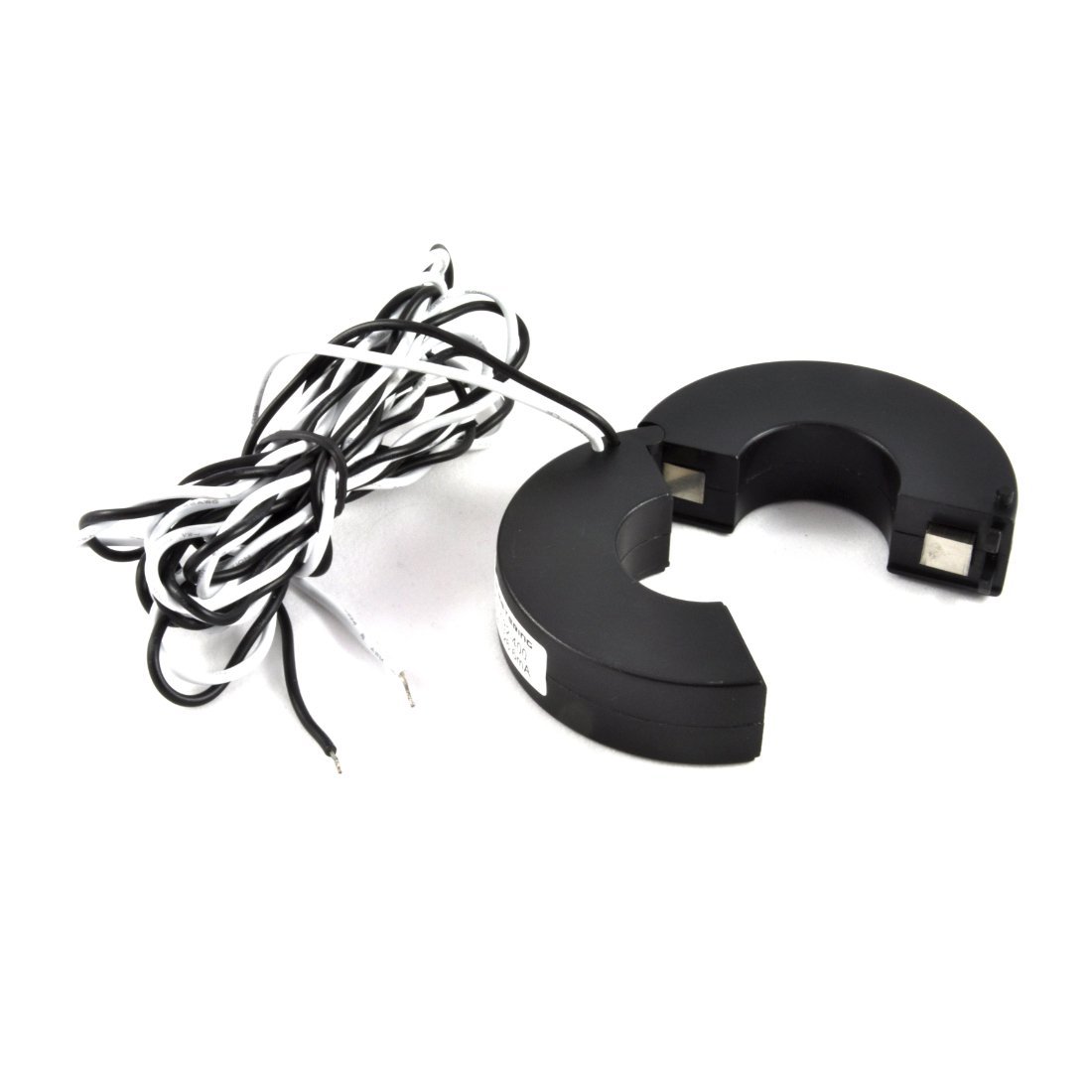

Our Split Core (open-able) CTs can be a savings overall in the labor cost savings. Simply clip these around the wires being read. Secure them in place with a zip tie.
Our EKM Omnimeter can be programmed internally to be used with 400 amp CTs. If you do not plan to read your Omnimeter directly with a USB Converter (necessary for programming the Omnimeters), please be sure we set the CT ratio to 400 amps for you.
- Use 1 CT for 120 volt single phase, or 230 volt 2-wire Australian (and other foreign) systems
- Use 2 CTs for 120/240 volt single phase systems
- Use 2 CTs for 3-phase 3-wire systems (no neutral)
- Use 3 CTs for 3-phase 4-wire systems
Accuracy Class: 0.1 --- 99.9% accurate. This is a revenue grade precision component.
These CTs come with wire leads that are 6 feet in length.
UL approved for use in combination with our UL listed meters to be a complete UL listed installation.
For more information about our products and services, we encourage you to visit our online Knowledge Base, which provides spec sheets, videos, tutorials, FAQs, diagrams, and more.
Spec Sheet: Split Core, 32mm, 400A CT
